F22 2MP 4 IN 1 HD CCTV PCB Board Camera

FOB Reference Price:Get Latest Price
US $4.5-5 / Pieces | 500 Piece/Pieces welcome to place sample order (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HS/OEM
Model Number:
F22+V30E
Type:
Analog Camera, 2MP 4 IN 1
Style:
hd board camera
Sensor:
CMOS, 1/3" CMOS
Special Features:
2mp 4 in 1
System:
PAL/NTSC
Chipest:
F22+V30E
Size:
38*38mm or 32*32mm
IR-CUT:
Support
Power:
DC12V
LUX:
0.1
S/N:
>69dB(AGC OFF)
Resolution:
2MP AHD/CVI/TVI/CVBS
Technology:
Infrared
Supply Ability
Supply Ability:
700000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
25pcs/plate, 0.28kg/plate; 1500pcs/carton, CTN wight:about 15kg/ ctn CTN size: 55*50*30cm
Port
Shenzhen
Lead Time :
1-3 working days after payment received

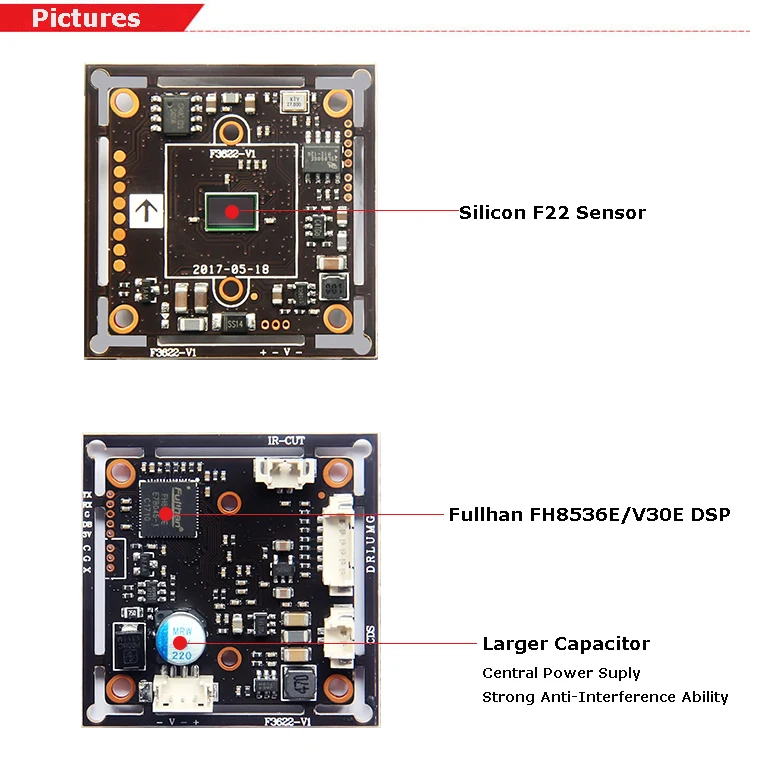

Use JX-F22 2mp low illumination CMOS,capture moving images

Support Coaxial high-definition output,Excellent performance, clear and bright picture

Lux:0.01Lux (F1.2, AGC ON),0LUX with IR

Support  IR-CUT,CDS external control,D/N

Support OSD

Support DWDR

Adaptive Digital Noise Reduction, 2D-DNR

Support UTC





Model

F3622-V1

Spec

                  2mp 4 in 1 Coaxial high-definition camera Module

Detail Specifications

Sensor

1/2.7" F22 + V30E(FH8536E)

System

PAL/NTSC

Effective Pixel

1920(H)x1080(V)

Illumination

0.01Lux (F1.2,AGC ON),0LUX with IR

Shutter

AUTO

D/N

EXT(Default)/AUTO/COLOR/B/W

Synchronously

Internal

FPS

1080P 25fps / 1080P 30fps

Video output

AHD/TVI/CVI/CVBS   switch

OSD Menu

Exposure

BRIGHTNESS / EXPOSURE MODE / GAIN

BW

ATW/MWB

D/N MODE

Infrared/Internal AUTO/COLOR/B&W

Video Setting

Contrast/Sharpness/COLOR GAIN/DNR/Format/DWDR

Language

ENGLISH/CHN1/ESPANOL/FRANCAIS/CHN2/Pyccknn/ITALIANO/EAAHNIKA

/Korean/Portugues

Reset



Common

Operation Temperature

-20℃ to 60℃

Working Humidity

Relative humidity less than 90 %

Power

DC12V(±20%)  - 70MA

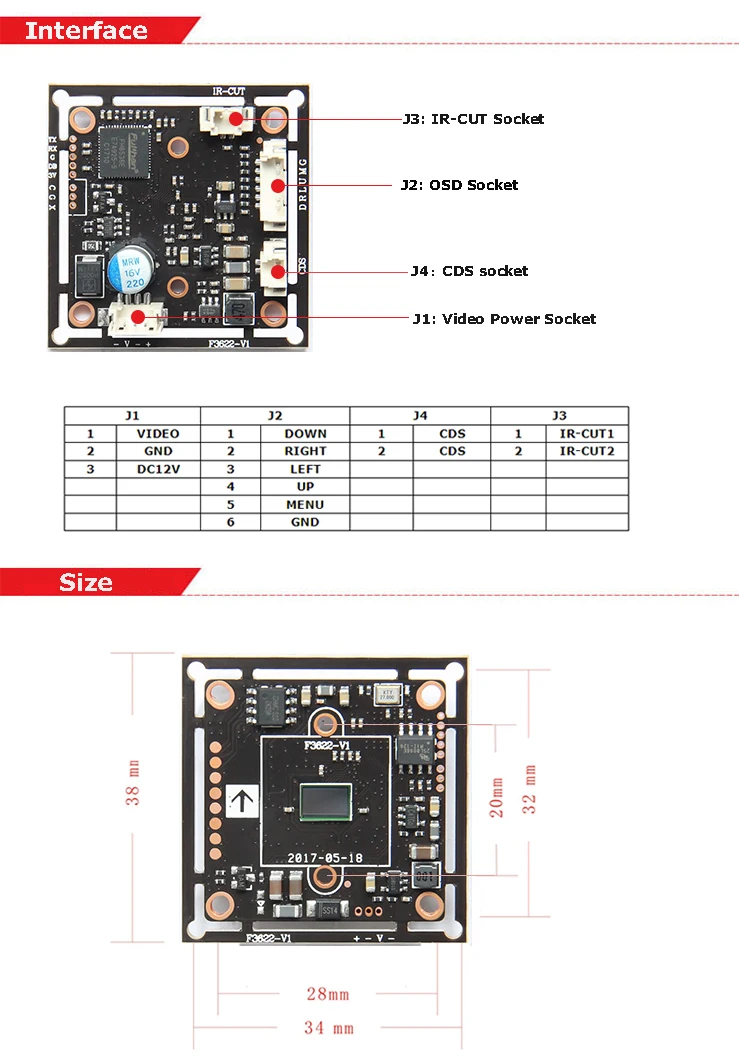

Size

32*32/38*38(mm)
