5mp camera module 4 in 1 ahd camera pcb board

FOB Reference Price:Get Latest Price
US $9.5-10 / Pieces | 500 Piece/Pieces sample order available (Min. Order)
Key Company Capacity
Production Capacity >
  • Employees: 101 - 200 People
  • Factory Size: 1,000-3,000 square meters
  • No. of Production Lines: 10
Research & Design >
  • No.of R&D Engineer: Less than 5 People
  • Production Certification: 3
  • Trademark: 1
Trade Capacity >
  • Export Mode: Using an agent
  • Export Percentage: 11% - 20%
  • No. of Employees inTrade Department: 6-10 People
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HS/OEM
Model Number:
IMX326+FH8538M
Type:
Analog Camera, AHD CCTV module
Style:
5mp 4 IN 1 CCTV module
Sensor:
CMOS, 1/3" sONY
Special Features:
5mp 4 IN 1
System:
PAL/NTSC
Chipest:
IMX326+FH8538M
Size:
38*38mm or 32*32mm
IR-CUT:
Support
Power:
DC12V
LUX:
0.1
S/N:
>69dB(AGC OFF)
Resolution:
AHD/TVI 5MP/4MP, CVI 4MP, CVBS
Technology:
Infrared
Supply Ability
Supply Ability:
700000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
25pcs/plate, 0.28kg/plate; 1500pcs/carton, CTN wight:about 15kg/ ctn CTN size: 55*50*30cm
Port
Shenzhen
Lead Time :
1-3 working days after payment received

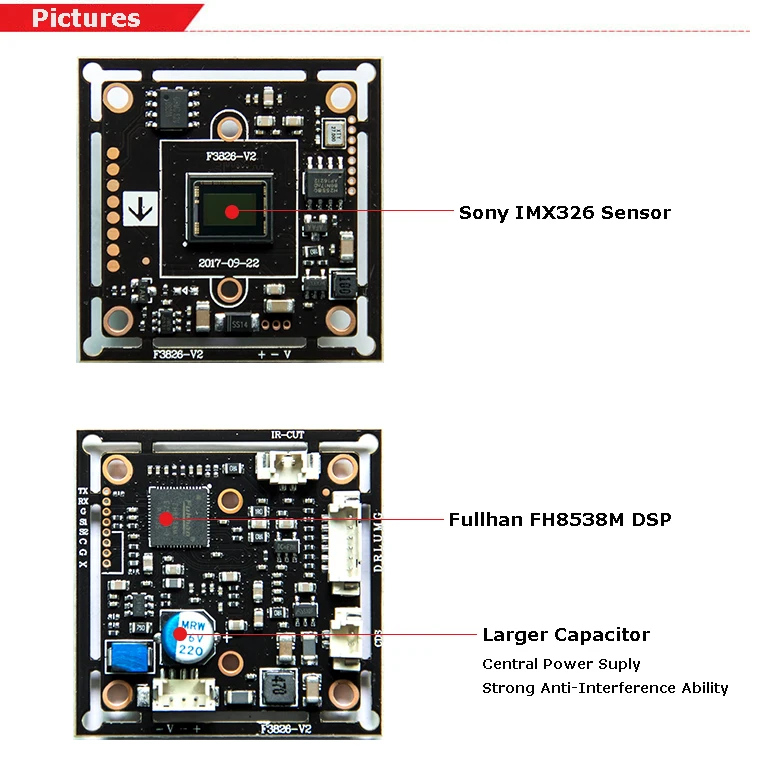

Use Sony IMX326 5million progressive scan CMOS capture moving images.

Multi-resolution(5mp/4mp) AHD.

Excellent performance, clear and bright picture.

0.1Lux@(F1.2,AGC ON),0LUX with IR.

Support IR-CUT,CDS external control,D/N

Support OSD ,Suitable for user-defined Settings.

Support DWDR. Support UTC





    Model

F3826-V1



                                   5mp/4mp Multi-resolution AHD Camera Module

Detailed Spec.

Sensor

1/2.9" IMX326+FH8538M

System

PAL/NTSC

Effective Pixel

2560(H)x1920(V) 5mp 4:3

2560(H)x1440(V) 4mp 16:9

Illumination

0.1Lux@(F1.2,AGC ON),0LUX with IR

Shutter

AUTO

D/N

EXT(Default)/COLOR/B/W

Synchronously

Internal

FPS

5MP@20fps/4MP@25fps / 4MP@30fps

Video output

AHD/TVI/CVI can be switch

OSD Menu

Exposure

Shutter/AGC/Brightness

AWB

ATW/MWB

DAY-NIGHT

INFRARED/COLOR/B&W

Video Setting

Contrast/Sharpness/Color Gain/DNR

Language

Chinese/English

Reset



Common Spec.

Operation Temperature

-20℃  to  60℃

Working Humidity

Relative humidity less than90 %

Power

DC12V(±20%)  - 70MA

Size

32*32/38*38(mm)
