1/4" 960P 1.3MP full hd infrared cmos cctv camera module

FOB Reference Price:Get Latest Price
$7.20 - $7.70 / Pieces | 500 Piece/Pieces Sample order is available (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OEM/HuiShi/Neutral
Model Number:
SC1135 + V20E
Type:
Analog Camera
Style:
Board camera
Sensor:
CMOS
Special Features:
With IR cut to be D/N
Resolution:
1/3.6" Color CMOS 1.3MP 960P
Camera type:
AHD/CVI/TVI/CVBS Hybrid module
OSD:
signal shifted by osd
Certificates::
CE/FCC/RoHS
Chip:
SC1135 + V20E
Power Supply:
DC12V 65mA
Size:
32*32mm or 38*38mm
Lux:
0.1LUX
Feature:
Single layer , IR sensor
Special feature:
6KV lightning protection
Technology:
IR-CUT filter
Supply Ability
Supply Ability:
700000 Piece/Pieces per Day

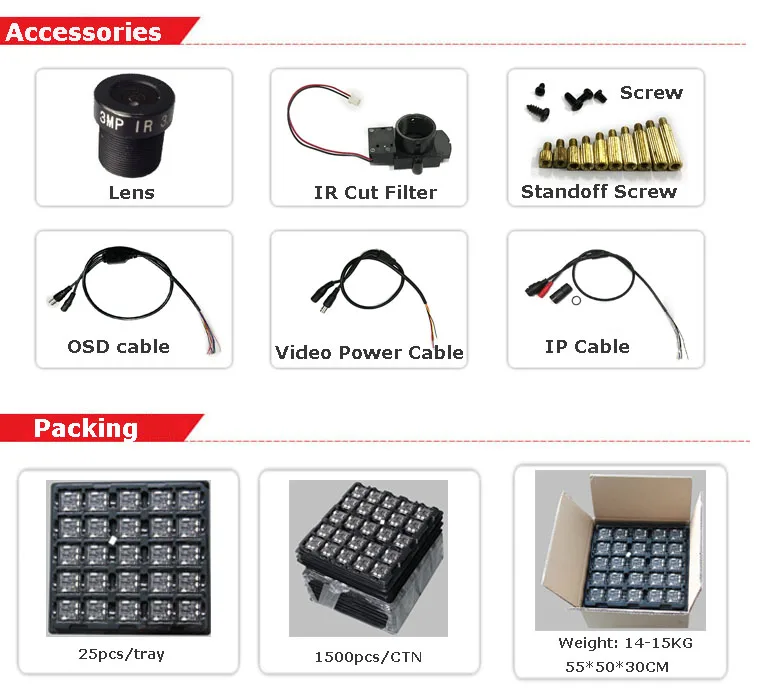

Packaging & Delivery
Packaging Details
25pcs/plate, 1500pcs/ctn, Weight: about 14kg/ctn CTN Size: 55*50*30CM
Port
Shenzhen, China
Lead Time :
1-5 working days according to your quantity,have 500pcs in stock





Product Description







Features:



130W CMOS sensor of progressive scan

Support coaxial HD output ,with clear and bright image

Illumination :0.01Lux@(F1.2,AGC ON),0LUX with IR

D/N Switch: support IR-CUT switch ,CDS extra control

Support OSD menu control

DWDR

Adaptive Digital Noise Reduction,2D-DNR

Support UTC







Specifications:

Model



F3630-V1-1135

Spec.

1.3mp 4IN1 Coaxial HD CCTV Camera Module

Detail Specification

Sensor

1/3" SC1135 + V20E(FH8532E)

Format

PAL/NTSC

Effective Pixel

1280(H)x960(V)

Illumination

0.01Lux@(F1.2,AGC ON),0LUX with IR

Shutter

AUTO

D/N Mode

EXT(Default)/AUTO/COLOR/B/W

Synchronously

Internal

FPS

720P@25fps / 720P@30fps

Video Output

AHD/TVI/CVI/CVBS can be switched

OSD Menu

Exposure

Brightness / Exposure Mode / GAIN

White Balance

ATW/MWB

D/N Mode

Infrared/Internal AUTO/Color/B&W

Video Setting

Contrast/Sharpness/

Color Gain /DNR/Format/DWDR

Language

CHN1/ESPANOL/CHN2/ITALIANO/ENGLISH

Reset



Common

Operation Temperature

-20℃  ~  60℃

Working Humidity

Relative humidity less than 90 %

Power

DC12V(±20%)  - 70MA

Size

32*32/38*38(mm)


Piture show:



Dimension:(Unit:mm /±0.3mm)





J1

J2

J4

J3

1

GND

1

DOWN

1

CDS

1

IR-CUT1

2

VIDEO

2

RIGHT

2

CDS

2

IR-CUT2

3

GND

3

LEFT









4

DC12V

4

UP













5

MENU













6

GND
