1080P CCTV Camera Module Manufacturer, AHD CMOS Camera Module IMX323

FOB Reference Price:Get Latest Price
US $6.4-6.9 / Pieces | 500 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Huishi/OEM
Model Number:
IMX323+NVP2441H
Type:
HD AHD, cctv camera pcb
Style:
cctv AHD module
Sensor:
CMOS, 1/2.9" CMOS
Technology:
Infrared
Special Features:
CMOS
System:
PAL/NTSC
Chipest:
IMX323+NVP2441H
Size:
32*32mm or 38*38mm
IR-CUT:
Support
Power:
DC12V
LUX:
0.001 LUX / F1.2
S/N:
>46dB
Resolution:
1080P
Supply Ability
Supply Ability:
700000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
25pcs/plate, 0.28kg/plate; 1500pcs/carton, CTN wight:14.7kg/ ctn CTN size: 55*50*30cm
Port
Shenzhen
Lead Time :
1-3 working days after payment confirmed



Feature

1. 1/2.9" 4 in 1 2MP 1080P camera module

2. Sony IMX323+NVP2441H
3. with ir cut filter

4. support OSD, Support UTC

5. 6KV lightning protection
6. Size: 38*38mm or 32*32mm







Specification

Sensor

1/2.9" IMX323+NVP2441H

System

PAL

NTSC

Effective Pixel

PAL:1920(H)×1080(V)

NTSC:1920(H)×1080(V)

Illumination

0.01 LUX / F1.2

Resolution

coaxial HD: 2MP 1080P,CVBS: 2000TVL

Scanning Frequency

50Hz                         60Hz

Gamma

0.45

Electronic Shutter

1/50~1/100000s

1/60~1/100000s

S/N

>46dB

Video Output

1.0V p-p

Operation Temperature

-20 º C TO 50 º C

Working Humidity

Relative humidity less than 95%

Power

DC12V (±10%)

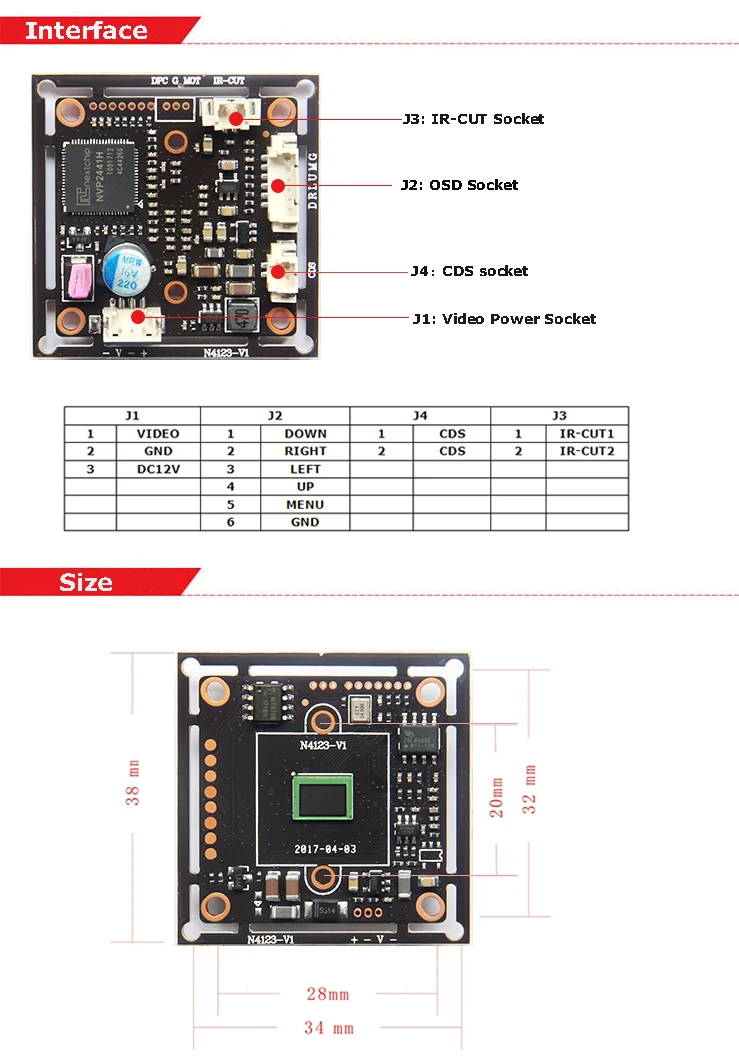

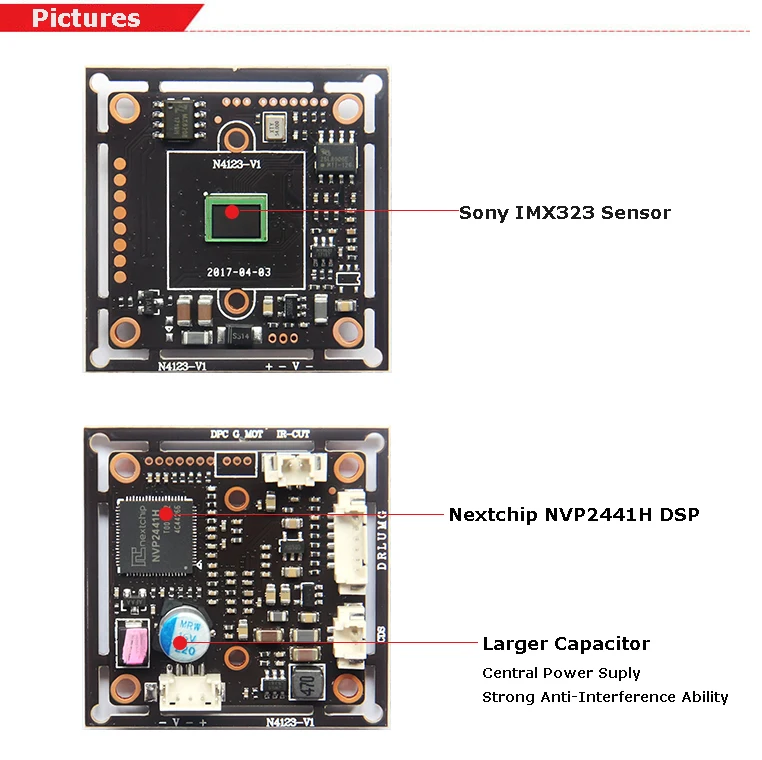

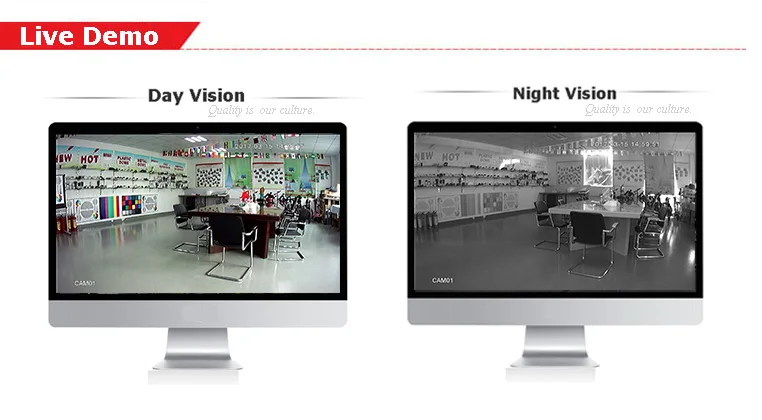

1 Picture IMX323+NVP2441H.jpg2Interface-IMX323+NVP2441H.jpg3 Live Demo-IMX323+2441.jpgFactory Show Exhibition& Honors-Contact information-Sky
