2000TVL Sony IMX323 2mp 1080P cctv board camera pcb

FOB Reference Price:Get Latest Price
US $5.7-6.2 / Pieces | 500 Piece/Pieces Welcome sample order (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OEM/HuiShi/Neutral
Model Number:
IMX323+V30E
Type:
Analog Camera
Style:
camera board
Sensor:
CMOS
Technology:
IR-CUT filter
Special Features:
Analog High Definition
Resolution:
1/3" 2mp 1080P camera board
Camera type:
Hybrid 4 in 1 AHD/CVI/TVI/CVBS Camera Board
Warranty:
1year
singal output:
AHD/CVI/TVI/CVBS analog singal output
Chip:
IMX323+V30E
Power Supply:
DC12V
Size:
38*38mm or 32*32mm
Lux:
0.01LUX
Feature:
Single layer , IR sensor
Sensor feature:
Day only, With IR cut to be D/N
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
25pcs/tray, 1500pcs/CTN, Weight: about 15kg, CTN Size: 55*50*30CM
Port
Shenzhen, China
Lead Time :
1-5 working days according to your quantity

Feature

1. Hybird board Camera 4 in 1

2. AHD/CVI/TVI/CVBS signal shift with OSD Joystick

3. Resolution: 1/3" 2mp 1080AHD/TVI/CVI/CVBS all in one camera board

4. Chip: PAL/NTSC:  IMX323+V30E

5. 0.01Lux

6. IR sensor,  With IR cut to be D/N

7. Size: 38*38 or 32mm*32mm

8. Excellent performance, clear and bright picture with competitive price





Specification

Model

F3623-V1

Spec.

2mp 4 in 1 Coaxial high-definition camera Module

Detail Specifications

Sensor

1/2.9" IMX323 + V30E(FH8536E)

System

PAL/NTSC

Effective Pixel

1920(H)x1080(V)

Illumination

0.01Lux (F1.2, AGC ON), 0LUX with IR

Shutter

AUTO

D/N

EXT(Default)/AUTO/COLOR/B/W

Synchronously

Internal

FPS

1080P 25fps / 1080P 30fps

Video output

AHD/TVI/CVI/CVBS  switch

OSD Menu

Exposure

BRIGHTNESS / EXPOSURE MODE / GAIN

BW

ATW/MWB

D/N MODE

Infrared/Internal AUTO/COLOR/B&W

Video Setting

Contrast/Sharpness/COLOR GAIN/DNR/Format/DWDR

Language

ENGLISH/CHN1/ESPANOL/FRANCAIS/CHN2/Pyccknn/ITALIANO/EAAHNIKA/Korean/Portugues

Reset



Common

Operation Temperature

-20℃ to  60℃

Working Humidity

Relative humidity less than 90 %

Power

DC12V(±20%)  - 70MA

Size

32*32/38*38(mm)

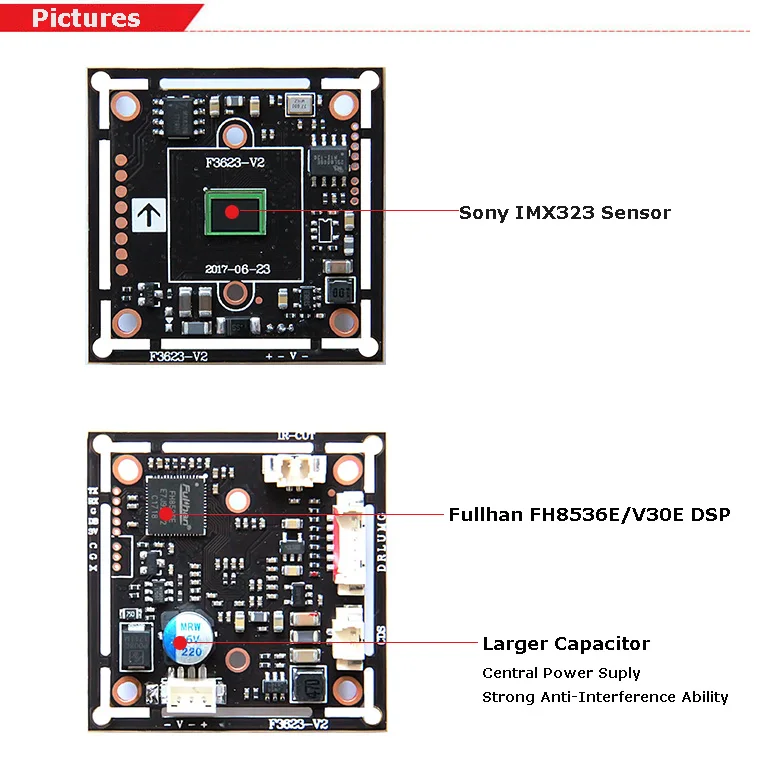

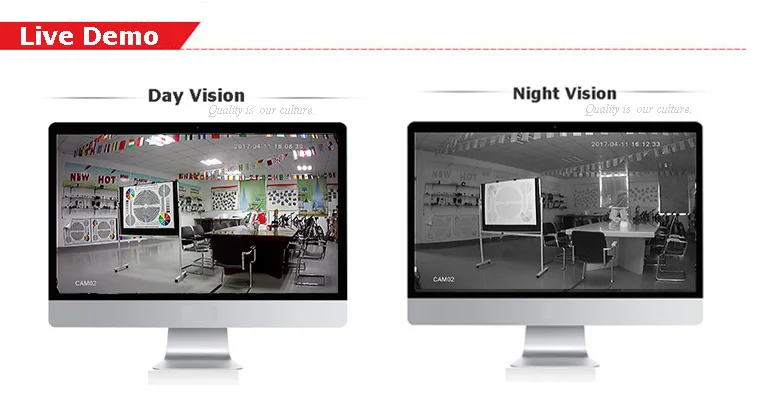

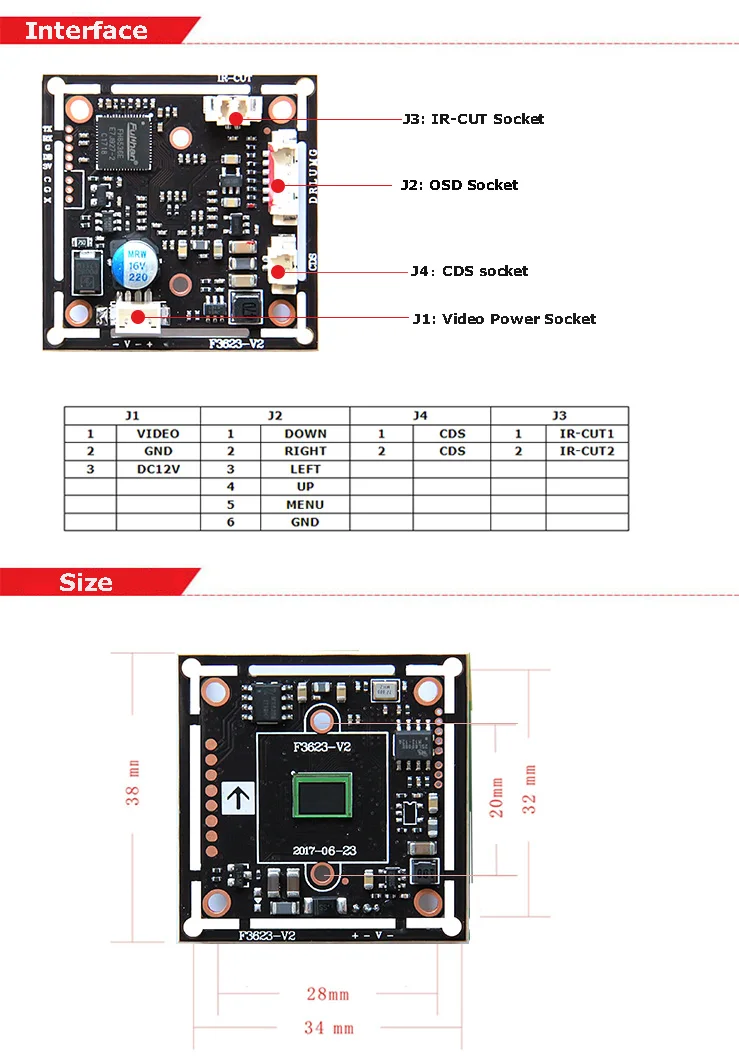

1Pictures-IMX323+V30E.jpg2 Interface-IMX323+V30E.jpg3 Live Demo-IMX323+V30E.jpg
