Low Cost Wifi Module H.264 IP Camera Module Poe

FOB Reference Price:Get Latest Price
US $15-15.5 / Pieces | 500 Piece/Pieces welcome sample order (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HS/OEM
Model Number:
IMX323+3516CV200
Type:
IP Camera, CCTV IP Camera
Style:
IP module
Sensor:
CMOS, 1/3" sony COMS IMX323
Special Features:
IP module
Chipest:
IMX323+3516CV200
Size:
38mm*38mm
S/N:
≥39dB(AGC OFF)
LUX:
0.01
Resolution:
960P
Power:
DC 12V
Function:
wifi audio optional
DWDR:
DWDR >80db
Technology:
Infrared
Supply Ability
Supply Ability:
700000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
25pcs/plate, 0.28kg/plate; 1500pcs/carton, CTN wight:about 15kg/ ctn CTN size: 55*50*30cm
Port
Shenzhen
Lead Time :
1-3 working days for standard board camera
Features:

1/2.9" IMX323 Low light,  CMOS sensor with DSP

Hi3516CV200 , standard single board  38mm*38mm , support D/N (IR CUT switch), with IR illumination .

Support photosensitive resistance signal. H.264 video coding ,support the  main/sub-main stream , resolution can reach as 1920*1080, color with  0.1Lux F1.2, B/W with 0.01Lux F1.2.

Enabled with ONVIF2.4 protocol , access to different platform management.



Specifications:

Model NumberS323H16V / S323H16VF (2mp )
Hardware
ModuleHI3516CV200  1/2.9” CMOS IMX323
LUXColor 0.1Lux F1.2; B/W 0.01Lux F1.2;
S/N≥50db(AGC OFF)
DWDRDWDR;>80db
Port (S323H16VF )
Audio/Intercom Input1CH MIC Input/linear input
Audio Output1CH Output
CVBS OutputN/A
SDCardInterfaceN/A
IO Port1CH reset
USB Port1 CH USB port ,support TF extension card
(MAX 64G)
Video Coding
Coding FormatH.264 Baseline,Main Profile,High Profile Coding
MJPEG Coding
ResolutionMain Stream1920*1080,1-25(30)fps/s  1280*720,1-25(30)fps/s
Sub-stream704*576,1-25(30)fps/s    640*480,1-25(30)fps/s
640*352,1-25(30)fps/s   320*240,1-25(30)fps/s
Video Coding Compression32Kbps-16Mbps  continuous adjustable,support CBR/VBR B
Subtitle OverlaySupport channel name,Date,Code stream information overlay,Overlay place adjustable
Data Transmission &Storage
Data  RecordVideo,picture
Storage MethodManual,auto(cycle,fixed time,alarm switch,motion detection)
Alarm TransferFTP,E-mail, browse, management software
ProtocolTCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP
ONVIF ProtocolONVIF  2.4
BrowserSupport IE6.0 and above browser(insert Web Server),support 10 visitors in the same time(MAX)
Mobile ClientSupport iPhone,iPad,Android
General  Parameters
PowerDC12V/POE
Power2W(MAX)
Dimension38(L) * 38(W) *15(H)mm( excluded the lenses)
IR-CUT Dimension20mm
Weight0.06kg

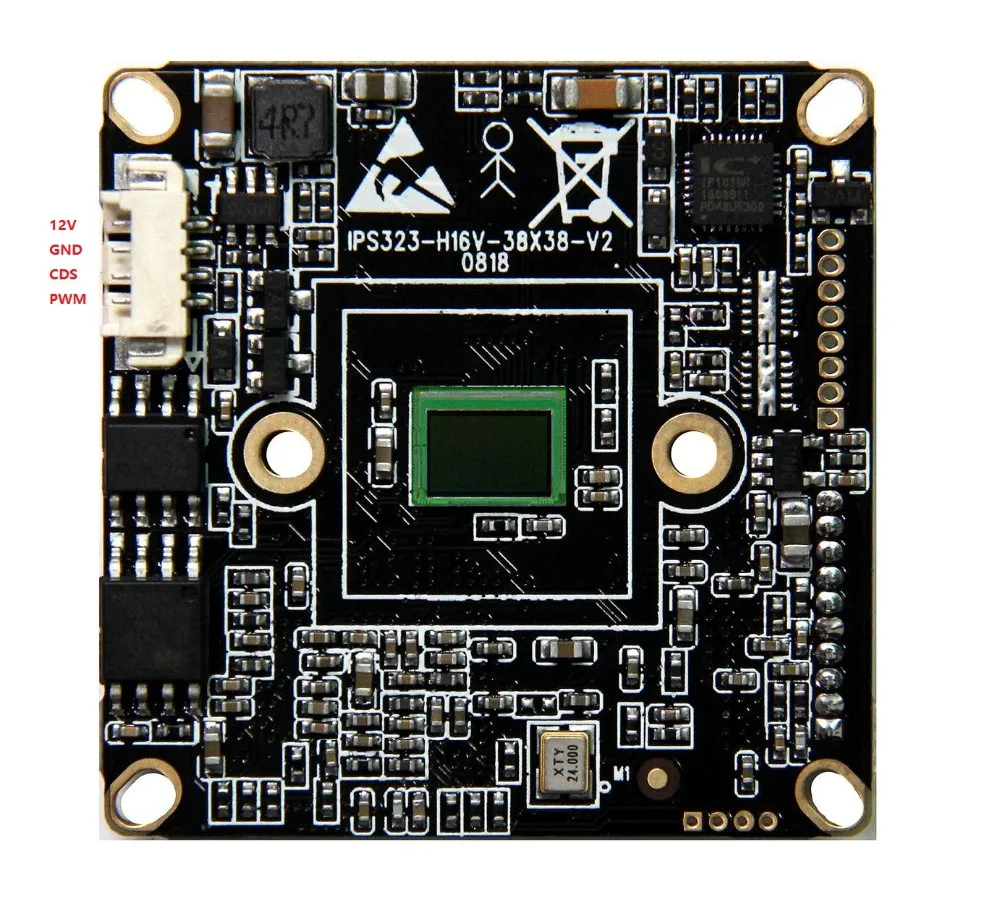

Picture Show:
