1.3MP AHD Cctv Camera Board

FOB Reference Price:Get Latest Price
US $3-3.5 / Pieces | 500 Piece/Pieces Welcome Sample Order (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HS/OEM/ODM
Model Number:
GC1064+V20E
Type:
4 IN 1 camera board, 1.3MP AHD Cctv Camera Board
Style:
PCB Board
Sensor:
CMOS
Technology:
Infrared
Special Features:
High Definition
Resolution:
1200tvl
TV System:
PAL/NTSC
IR-CUT:
Support
illumination:
0.1 Lux
LENS:
AUTO/MANUAL
power:
DC12V
Size:
38*38mm or 32*32mm
Certificate:
CE/FCC/RoHS
Warranty:
1 Year
Supply Ability
Supply Ability:
700000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
25pcs/plate, 0.28kg/plate; 1500pcs/carton, CTN wight:13.9kg/ ctn CTN size: 55*50*30cm
Port
ShenZhen China
Lead Time :
2-3 working days for sample order after payment received

Feature

1. Hybird board Camera 4 in 1

2. AHD/CVI/TVI/CVBS signal shift with OSD Joystick

3. Resolution: 1/4" 1.3mp 960AHD/TVI/CVI/CVBS all in one camera board

4. Chip: PAL/NTSC:  GC1064+V20E

5. 0.1Lux

6. IR sensor,  With IR cut to be D/N

7. Size: 38*38 or 32mm*32mm

8. Excellent performance, clear and bright picture with competitive price







Specification



Model

V20E-1064

Spec.

1.3MP 4 in 1 Coaxial high-definition

Detail Specifications

Sensor

1/3.6" GC1064 + V20E(FH8532E)

System

PAL/NTSC

Effective Pixel

1280(H)x720(V)

Illumination

0.1Lux@(F1.2,AGC ON),0LUX with IR

Shutter

AUTO

D/N

EXT(Default)/AUTO/COLOR/B/W

Synchronously

Internal

FPS

720P@25fps / 720P@30fps

Video output

AHD/TVI/CVI/CVBS  switch

OSD Menu

Exposure

BRIGHTNESS / EXPOSURE MODE / GAIN

BW

ATW/MWB

D/N MODE

Infrared/Internal AUTO/COLOR/B&W

Video Setting

Contrast/Sharpness/COLOR GAIN/DNR/Format/DWDR

Language

CHN1/ESPANOL/CHN2/ITALIANO/ENGLISH

Reset



Common

Operation Temperature

-20℃  to  60℃

Working Humidity

Relative humidity less than 90 %

Power

DC12V(±20%)  - 50MA

Size

32*32/38*38(mm)

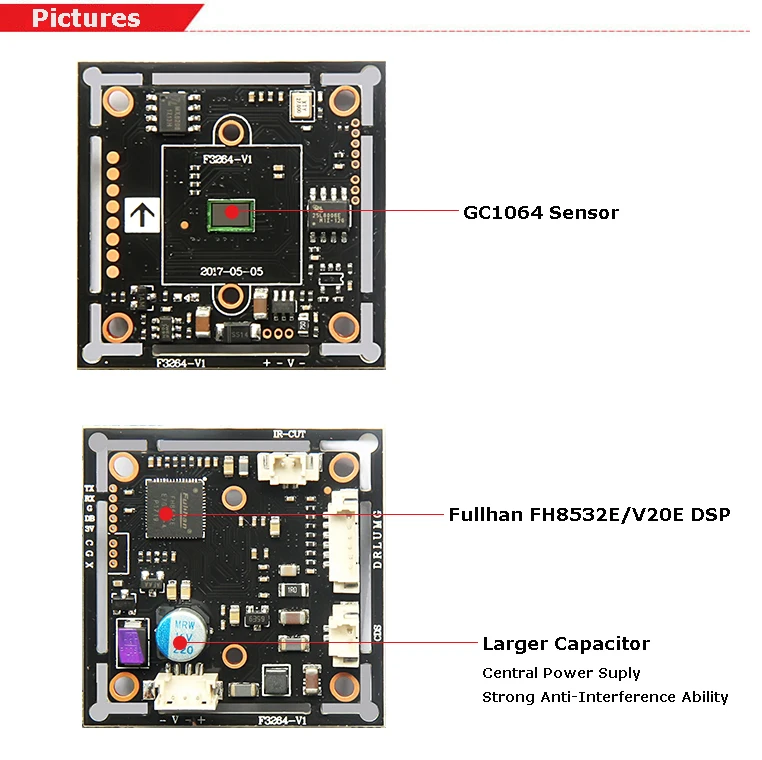

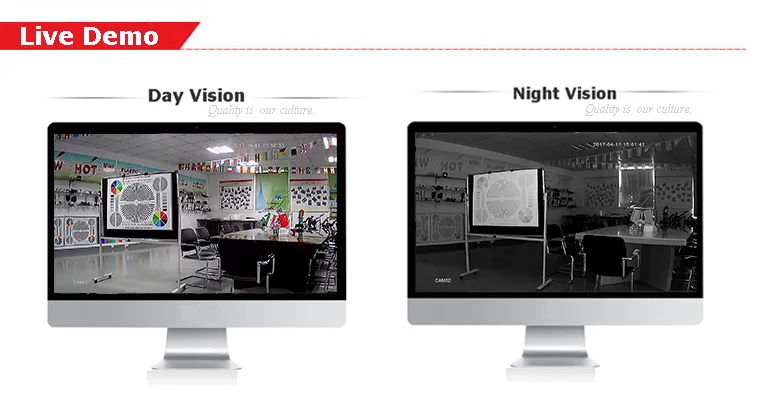

1 Pictures-GC1064+V20E.jpg2 Interface-GC1064+V20E.jpg3 Live Demo-GC1064+V20E.jpgFactory Show Exhibition& Honors-Contact information-Sky
