720P 1MP AHD cctv board camera module pcb

FOB Reference Price:Get Latest Price
US $2.5-3 / Pieces | 500 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Huishi/OEM
Model Number:
OV9732+V20E
Type:
Analog Camera, cctv camera pcb
Style:
PCB board camera
Sensor:
CMOS, 1/3.6" CMOS
Technology:
Infrared
Special Features:
4 in 1
System:
PAL/NTSC
Chipest:
OV9732+V20E
Size:
38*38mm or 32*32mm
IR-CUT:
Support
Power:
DC12V
LUX:
0.1
S/N:
>69dB(AGC OFF)
Resolution:
1000TVL
Supply Ability
Supply Ability:
700000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
25pcs/plate, 0.28kg/plate; 1500pcs/carton, CTN wight:13.9kg/ ctn CTN size: 55*50*30cm
Port
Shenzhen
Lead Time :
1-3 working days

720P 1MP AHD cctv board camera module pcb



 Feature

l      Use 1 million progressive scan CMOS,capture moving images

l       Excellent performance, clear and bright picture

l       Lux:0.1Lux@(F1.2,AGC ON),0LUX with IR

l       Support  IR-CUT,CDS external control ,D/N

l      Support  OSD

l      Support digital wide dynamic (DWDR)

l      Adaptive Digital Noise Reduction,2D-DNR

l      Support  UTC  function









Specification



Detail Specifications

Sensor

1/4" OV9732 + V20E(FH8532E)

System

PAL/NTSC

Effective Pixel

1280(H)x720(V)

Illumination

0.1Lux (F1.2,AGC ON),0LUX with IR

Shutter

AUTO

D/N

EXT(Default)/AUTO/COLOR/B/W

Synchronously

                        Inner -synchronous

FPS

720P 25fps / 720P 30fps

Video Output

AHD/TVI/CVI/CVBS  switch

OSD

Exposure

Brightness / Exposure mode / Gain

BW

ATW/MWB

D/N MODE

Infrared/Internal AUTO/Color/B&W

Video Setting

Contrast / Sharpness / Saturation/ Digital Noise Reduction / Video format /DWDR

Language

Simple Chinese/Epanol/Chinese /Italian/ English

Reset



Common

OperationTemperature

-20℃  to  60℃

Working Humidity

Relative humidity less than 90 %

Power

DC12V(±20%)  - 50MA

Size

32*32/38*38(mm)

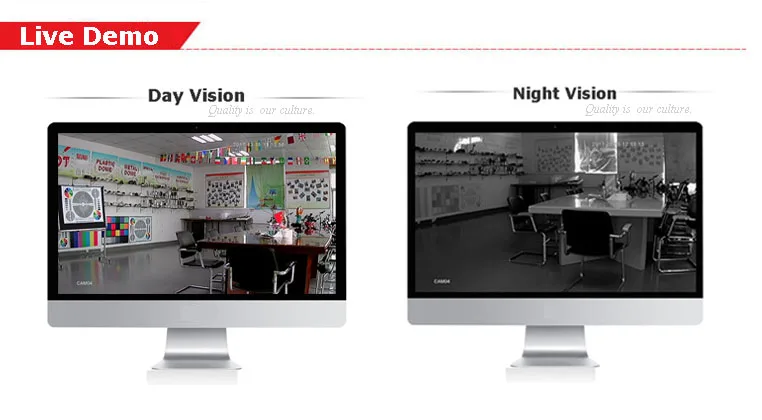

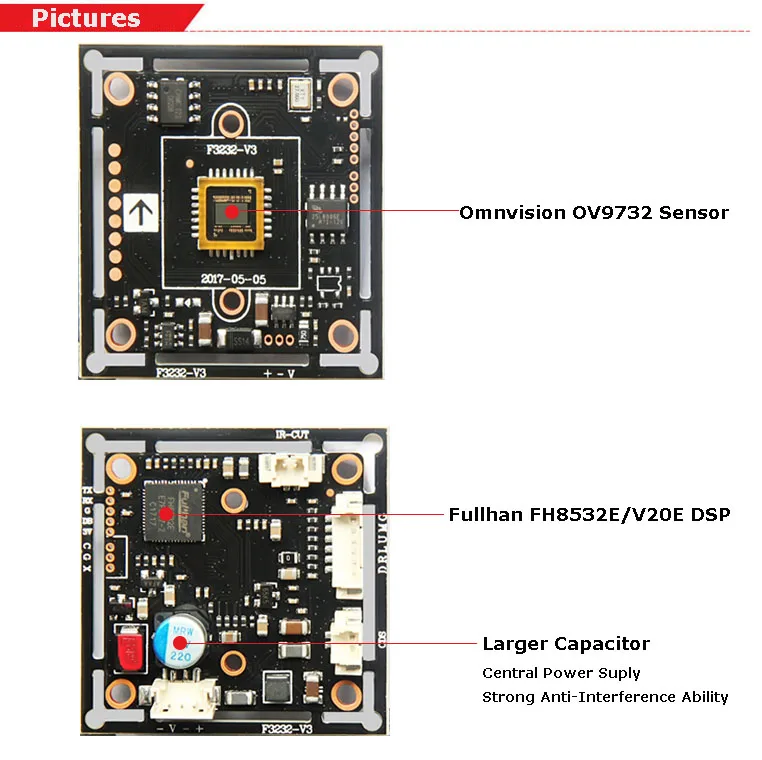

Pictures-9732+V20EInterface-9732+V20E-Accessories-9732+V20ELive Demo-9732+V20EFactory Show Exhibition& Honors-Contact information-Sky
